Ariens S-16H Engine


Ariens S-16H tractor photo
1976 - 1978
S Series
Garden tractor
Series map:
S-14H
S-16H
S-18H
14.0hp
16.0hp
18.0hp
Engine Detail
Kohler K341S
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement588 cc
35.90 ci
Bore/Stroke3.75x3.25 inches
95 x 83 mm
Power (gross)16 hp
11.9 kW
Fuel use1.50 gal/hour
5.7 l/hour
Air cleanerdry element with foam precleaner
Compression7.3:1
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

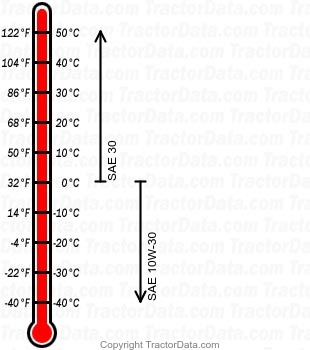

S-16H gasoline engine oil chart
Oil capacity2 qts
1.9 L
