Ariens S-10G Engine


Ariens S-10G tractor photo
1976 - 1978
S Series
Garden tractor
Series map:
S-10G
S-12H
10.0hp
12.0hp
Engine Detail
Kohler K241
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power (gross)10 hp
7.5 kW
Air cleanerdry element with foam precleaner
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

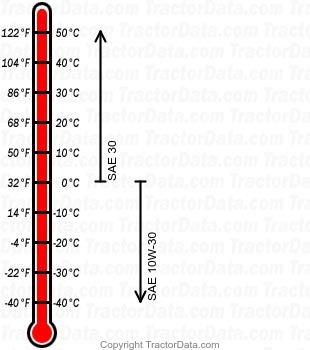

S-10G gasoline engine oil chart
