| | 1973 - 1975 |
| S Series | | Garden tractor |
|
Series map:
S-14
S-16
14.0hp
16.0hp
| Engine Detail |
| Kohler K341S |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 588 cc
35.90 ci
|
| Bore/Stroke | 3.75x3.25 inches
95 x 83 mm
|
| Power (gross) | 16 hp
11.9 kW
|
| Starter | electric
|
| Starter volts | 12
|

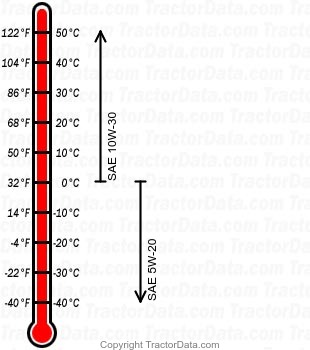

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
