Ariens GT16 931023 Engine


Ariens GT16 931023 tractor photo
1979 - 1982
Garden tractor
Series map:
GT14
GT16
GT17
14.0hp
16.0hp
17.0hp
Engine Detail
Kohler K341
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement588 cc
35.90 ci
Bore/Stroke3.75x3.25 inches
95 x 83 mm
Power (gross)16 hp
11.9 kW
Fuel use1.50 gal/hour
5.7 l/hour
Air cleanerdry element with foam precleaner
Compression7.3:1
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

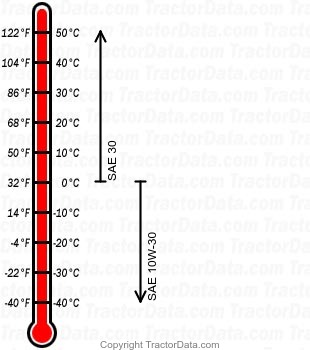

GT16 931023 gasoline engine oil chart
Oil capacity2 qts
1.9 L
