Ariens GT14 931022


Ariens GT14 931022 tractor photo
1979 - 1982
Garden tractor
Series map:
GT14G
GT14
GT16
14.0hp
14.0hp
16.0hp
Production
ManufacturerAriens
Garden tractor
Built in Brillion, Wisconsin, USA
Ariens GT14 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank4.5 gal
17.0 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Tractor hitch
Rear Type0 OptOptional
Power Take-off (PTO)
Rear PTOindependent OptOptional
Clutchelectric
Front PTOindependent
Clutchelectric
Front PTO Typepulley
Dimensions & Tires
Wheelbase48 inches
121 cm
Weight895 lbs
405 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Ariens GT14 attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...

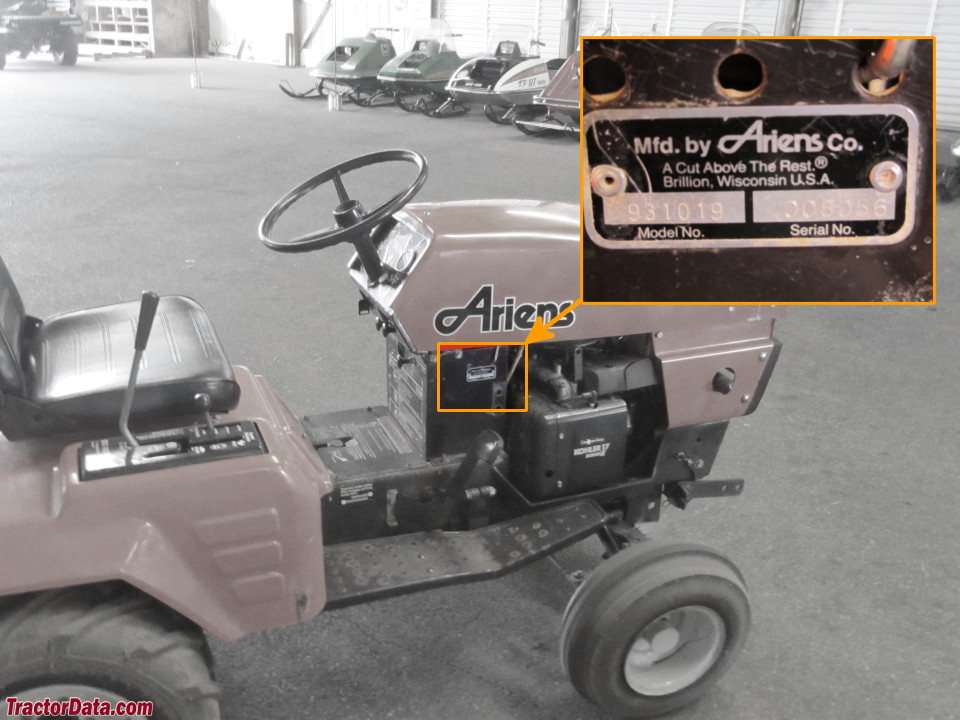

GT14 Serial Number Location
Ariens GT14 serial number location
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery CCA255
Battery volts12
Battery AH39
References
GT14 931022 references literature
Lawn & Garden Tractors published in 1979, by Ariens
Lawn and Garden Tractors published in 1980, by Ariens
