Lawn Tractors > New Holland > S-16

New Holland S-16 Engine



New Holland S-16 tractor photo
1972 - 1973
Garden tractor
Series map:
S-14
S-16
14.0hp
16.0hp
Engine Detail
Kohler K341S
gasoline
1-cylinder
air-cooled
Displacement588 cc
35.9 ci
Bore/Stroke3.75x3.25 inches
95 x 83 mm
Power (gross)16 hp
11.9 kW
Air cleanerdry element
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.009 inches*Cold.
0.229 mm
Exhaust valve clearance0.018 inches*Cold.
0.457 mm
Engine Oil

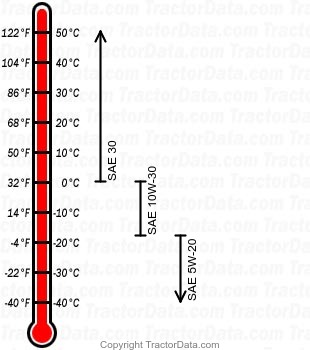

S-16 gasoline engine oil chart
Oil capacity2 qts
1.9 L
