New Holland S-14
| | 1970 - 1973 |
| Garden tractor |
|
Series map:
S-12
S-14
S-16
12.0hp
14.0hp
16.0hp
| Production |
| Manufacturer | New Holland (a part of Sperry)
|
| Garden tractor |
| Built in Belleville, Pennsylvania, USA |
| Original price was $1,825 in 1973 |
| Mechanical |
| Steering | manual
|
| Parking prawl brakes |
| Open operator station. Vinyl weather cab optional. |
| Tractor hitch |
| Rear Type | 0 OptOptional
|
| Power Take-off (PTO) |
| Rear PTO | Optional
|
| Rear PTO Type | 3600
|
| Front PTO | independent
|
| Clutch | electric
|

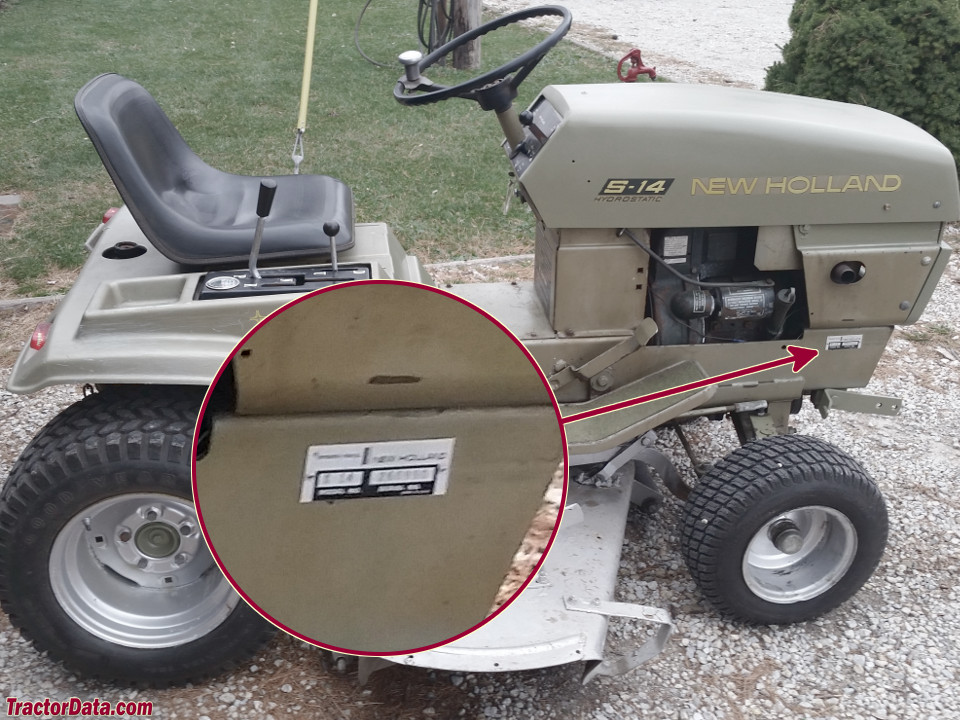

| S-14 Serial Number Location |
 |
| Serial number plate on the front right of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | flywheel alternator
|
| Charging amps | 15
|
| Battery volts | 12
|
| Battery AH | 35
|
| References |
 |
| Lawn & Garden Tractors published in 1972, by New Holland |
| Operator's Manual Garden Tractor S-12 S-14 S-16 (42001232) published in 1972 |
