Lawn Tractors > New Holland > S-14

New Holland S-14 Engine



New Holland S-14 tractor photo
1970 - 1973
Garden tractor
Series map:
S-12
S-14
S-16
12.0hp
14.0hp
16.0hp
Engine Detail
Kohler K321PS
gasoline
1-cylinder
air-cooled
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power (gross)14 hp
10.4 kW
Air cleanerdry element
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Intake valve clearance0.009 inches*Cold.
0.229 mm
Exhaust valve clearance0.018 inches*Cold.
0.457 mm
Engine Oil

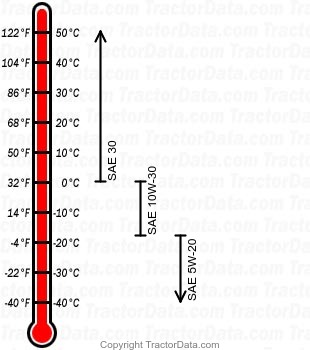

S-14 gasoline engine oil chart
Oil capacity2 qts
1.9 L
