Sears ST/10 502.25910 Engine


Sears ST/10 502.25910 tractor photo
1973 - 1976
Model year
Garden tractor
Murray built
Series map:
ST/8
ST/10
ST/10 Deluxe
8.0hp
10.0hp
10.0hp
Engine Detail
Briggs & Stratton 251707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement399 cc
24.36 ci
Bore/Stroke3.44x2.625 inches
87 x 67 mm
Power (gross)10 hp
7.5 kW
Rated RPM3600
Starterelectric
Starter volts12

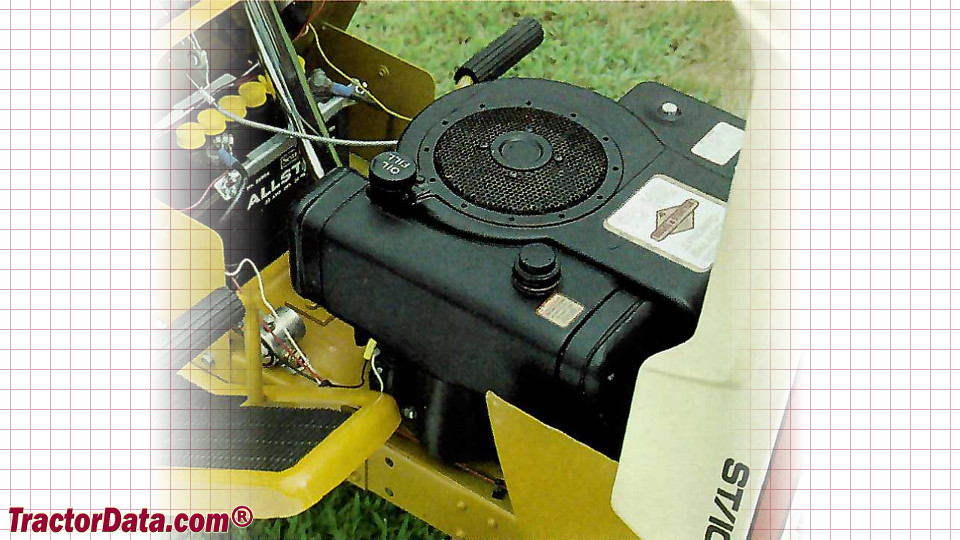

Sears ST/10 Engine
Sears ST/10 engine image
