Lawn Tractors > Craftsman > 917.25891

Craftsman 917.25891 Engine



Craftsman 917.25891 tractor photo
1997
Garden tractor
AYP built
Engine Detail
Kohler CV22
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)22.5 hp
16.8 kW
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm

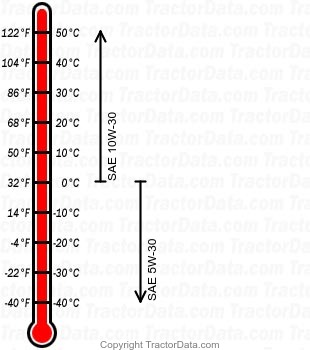

Engine Oil
917.25891 gasoline engine oil chart
Oil capacity2.1 qts
2.0 L
Oil change25 h
