Lawn Tractors > John Deere > SX75

John Deere SX75 Engine



John Deere SX75 tractor photo
1987 - 1990
Riding lawn mower
Series map:
SX75
SX95
9.0hp
12.5hp
Engine Detail
Kawasaki FC290V
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement290 cc
17.7 ci
Bore/Stroke3.07x2.36 inches
78 x 60 mm
Power9 hp
6.7 kW
Air cleanerdry element
Starterelectric
Starter volts12
SparkplugChampion RCJ8
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

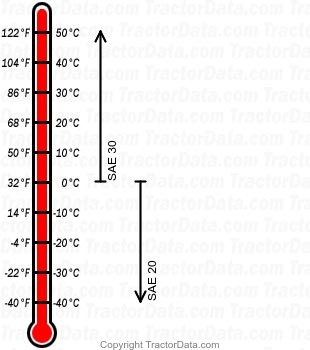

SX75 gasoline engine oil chart
Oil capacity1.2 qts
1.1 L
Oil change50 h
