Cub Cadet HDS 2145 Engine


Cub Cadet HDS 2145 tractor photo
1994 - 1995
2000 Series
Lawn tractor
Series map:
2140
2145
2150
14.0hp
14.0hp
15.0hp
Engine Detail
Onan
gasoline
1-cylinder
air-cooled
Displacement388 cc
23.7 ci
Bore/Stroke3.31x2.76 inches
84 x 70 mm
Power (gross)14 hp
10.4 kW
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.035 inches
0.889 mm
Engine Oil

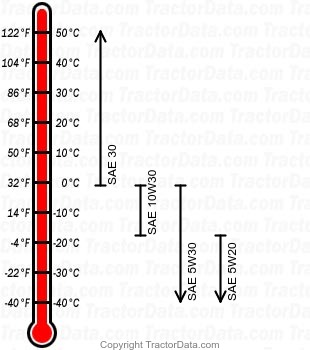

HDS 2145 gasoline engine oil chart
Oil capacity1 qts
0.9 L
Oil change100 h
