Simplicity Landlord 16 Transmission


Simplicity Landlord 16 tractor photo
1992 - 1998
Landlord Series
Garden tractor
Series map:
Landlord 14
Landlord 16
Landlord 17
14.0hp
16.0hp
17.0hp
Transmission options
hydrostatic
6-speed gear
Transmission
TransmissionTuff Torq K215-A
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity2.8 qts
2.6 L
Speeds
Landlord 16 K215-A belt-driven hydrostatic speeds
Transmission
TransmissionTuff Torq K210-A
Typebelt-driven gear
Gears6 forward and 1 reverse
Oil capacity3.875 qts
3.7 L
The Landlord 16G became available in 1994 when it replaced the 14G.
Speeds

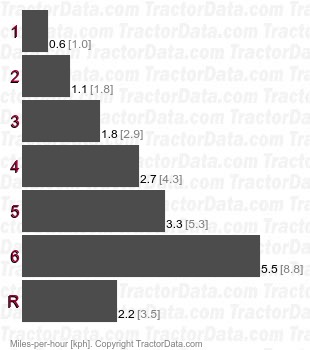

Landlord 16 K210-A belt-driven gear speeds
