Simplicity Legacy XL 27LC Engine


Simplicity Legacy XL 27LC tractor photo
2004 - 2016
Legacy Series
Garden tractor
Series map:
Legacy XL 27
Legacy XL 27LC
Legacy XL 27D
27.0hp
27.0hp
27.0hp
Engine Detail
Kawasaki FD750D
gasoline
2-cylinder
liquid-cooled horizontal-shaft V-Twin
Displacement745 cc
45.5 ci
Bore/Stroke3.07x3.07 inches
78 x 78 mm
Power (gross)27 hp
20.1 kW
Compression8.5:1
Torque43 lb-ft
58.3 Nm
Torque RPM2400
Starterelectric
Starter volts12
Oil capacity2.1 qts
2.0 L
Coolant capacity3 qts
2.8 L
Simplicity Legacy XL 27LC Engine

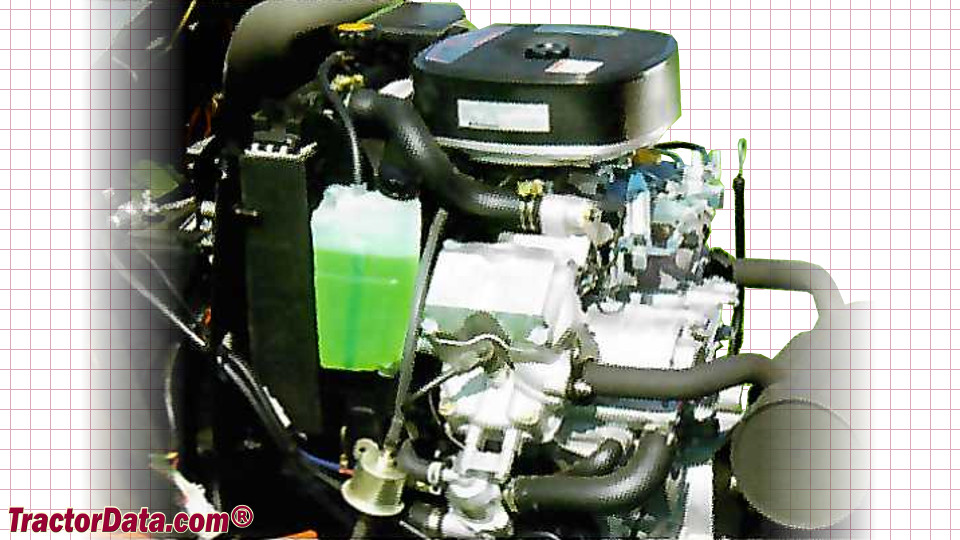

Simplicity Legacy XL 27LC engine image
