Lawn Tractors > J.I. Case > 444

J.I. Case 444 Engine



J.I. Case 444 tractor photo
1969 - 1988
Model year
400 Series
Garden tractor
Series map:
444
446
14.0hp
16.0hp
Engine Detail
Kohler K321AS
gasoline
1-cylinder
air-cooled
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power14 hp
10.4 kW
Compression7:1
Rated RPM3600
Starter volts12
Sparkplug gap0.035 inches
0.889 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.009 inches (cold)
0.229 mm
Exhaust valve clearance0.020 inches (cold)
0.508 mm
Engine Oil

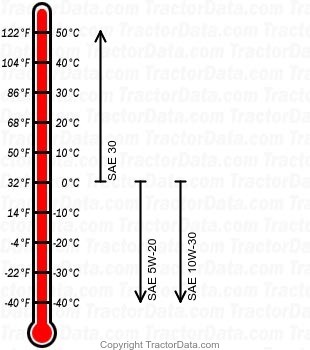

444 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
