Lawn Tractors > Economy > Power King 10HP

Economy Power King 10HP Transmission



Economy Power King 10HP tractor photo
1964 - 1967
Garden tractor
Transmission options
3-speed gear
9-speed gear
Transmission
Transmission2.5 T92
Typeshaft-driven gear
Gears3 forward and 1 reverse
Clutch152.4mm mechanical dry disc

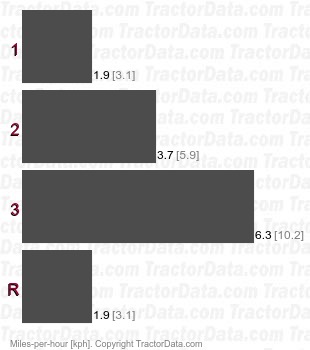

Speeds
With 8.00-16 rear tires. Speeds for 24-inch tires are about 20% faster.
Power King 10HP T92 shaft-driven gear speeds
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears9 forward and 3 reverse
Clutch152.4mm mechanical dry disc
Tandem transmission option adds a second gearbox inline with the original.

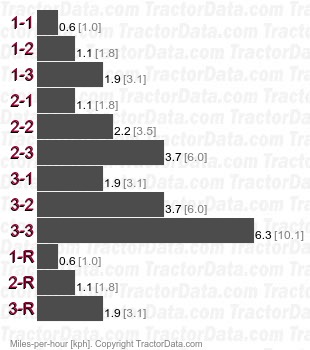

Speeds
With 8.00-16 rear tires. Speeds for 24-inch tires are about 20% faster.
Power King 10HP T92 shaft-driven gear speeds
