Lawn Tractors > Economy > Jim Dandy 14HP

Economy Jim Dandy 14HP Transmission



Economy Jim Dandy 14HP tractor photo
1968 - 1977
Model year
Garden tractor
Transmission options
3-speed gear
9-speed gear
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears3 forward and 1 reverse
Clutch152.4mm mechanical dry disc
Speeds
With 7.00-16 rear tires.

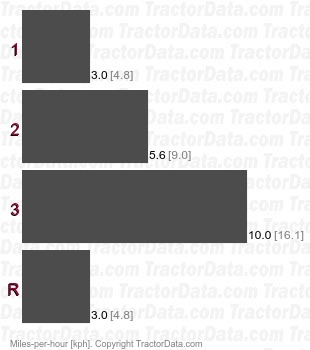

Jim Dandy 14HP T92 shaft-driven gear speeds
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears9 forward and 3 reverse
Clutch152.4mm mechanical dry disc
Tandem transmission option adds a second gearbox inline with the original.
Speeds
With 7.00-16 rear tires.

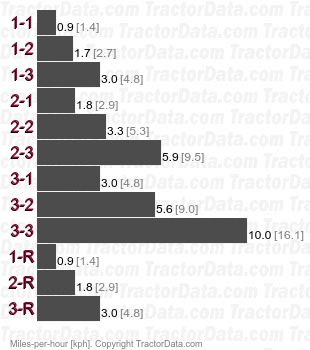

Jim Dandy 14HP T92 shaft-driven gear speeds
