Economy Jim Dandy 12HP Transmission
|
|
| Transmission options | |
| 3-speed gear | |
| 9-speed gear |
| Transmission | |
| Transmission | 2.5 T92 |
| Type | shaft-driven gear |
| Gears | 3 forward and 1 reverse |
| Clutch | 152.4mm mechanical dry disc |

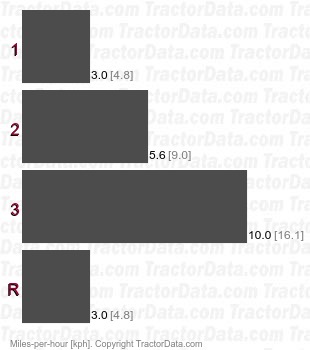

| Speeds | |
| With 7.00-16 rear tires. | |
|
| Transmission | |
| Transmission | Borg-Warner T92 |
| Type | shaft-driven gear |
| Gears | 9 forward and 3 reverse |
| Clutch | 152.4mm mechanical dry disc |
| Tandem transmission option adds a second gearbox inline with the original. | |

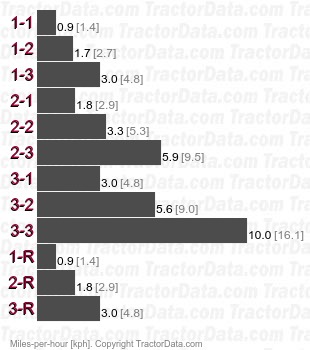

| Speeds | |
| With 7.00-16 rear tires. | |
|
