Cub Cadet 682
| | 1979 - 1985 |
|
| CCC 82 Series | | Garden tractor |
|
Series map:
682
782
17.0hp
17.0hp
| Production |
| Manufacturer | Cub Cadet (a part of MTD)
|
| Garden tractor |
| Built in Brownsville, Tennessee, USA |
| Variants |
| 782 | hydraulics
|
| 682 | manual lift
|
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Integral wet disc brakes |
| Open operator station. |
| Tractor hitch |
| Rear Type | 0 OptOptional
|
| Power Take-off (PTO) |
| Front PTO | independent
|
| Clutch | electric
|

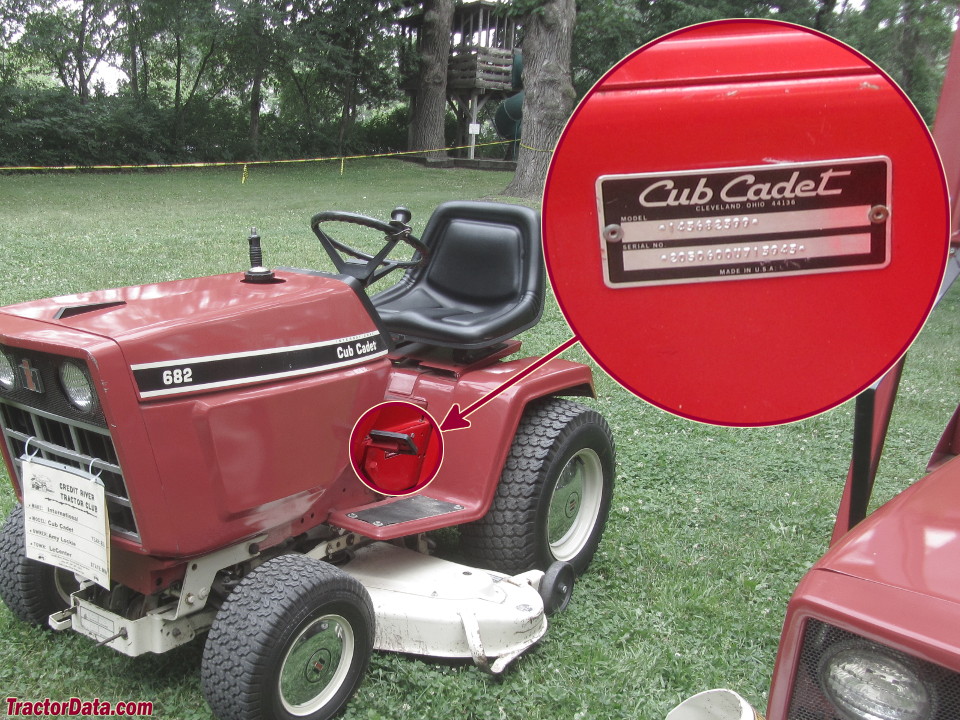

| 682 Serial Number Location |
 |
| Serial number plate on the left side of tractor frame. Model code in parentheses. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 15
|
| Battery CCA | 200
|
| Battery volts | 12
|
| Battery AH | 32
|
| References |
 |
| Operator's Manual 1282, 682, and 782 (1096805 R1) published in 1982 |
| Operator's Manual 682 and 782 (772-3038) |
| One Tough Tractor published in 1985, by Cub Cadet |
| All-Star 1982 line-up published by Cub Cadet |
| Tractors published in 1984, by Cub Cadet |
| International Cub Cadet Tractors published in 1985, by International Harvester |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
