Lawn Tractors > Power King > 2416

Power King 2416 Transmission



Power King 2416 tractor photo
1977 - 1983
2400 Series
Garden tractor
Transmission options
3-speed gear
4-speed gear
9-speed gear
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears3 forward and 1 reverse
Clutch152.4mm dry disc
Oil capacity0.25 qts
0.2 L
Oil type
80/90 Gear Lube
Speeds
2416 T92 shaft-driven gear speeds
Transmission
Typeshaft-driven gear
Gears4 forward and 1 reverse
Clutch152.4mm dry disc
Oil capacity0.1875 qts
0.2 L
Speeds
2416 shaft-driven gear speeds
Transmission
TransmissionBorg-Warner T92
Typeshaft-driven gear
Gears9 forward and 3 reverse
Clutch152.4mm dry disc
Optional creeper for 3-speed transmission.
Speeds

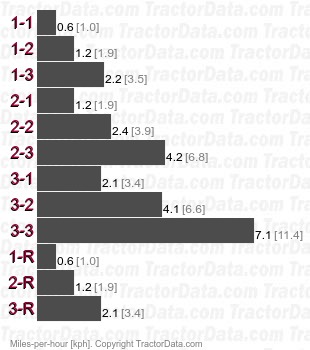

2416 T92 shaft-driven gear speeds
