Ingersoll 4020

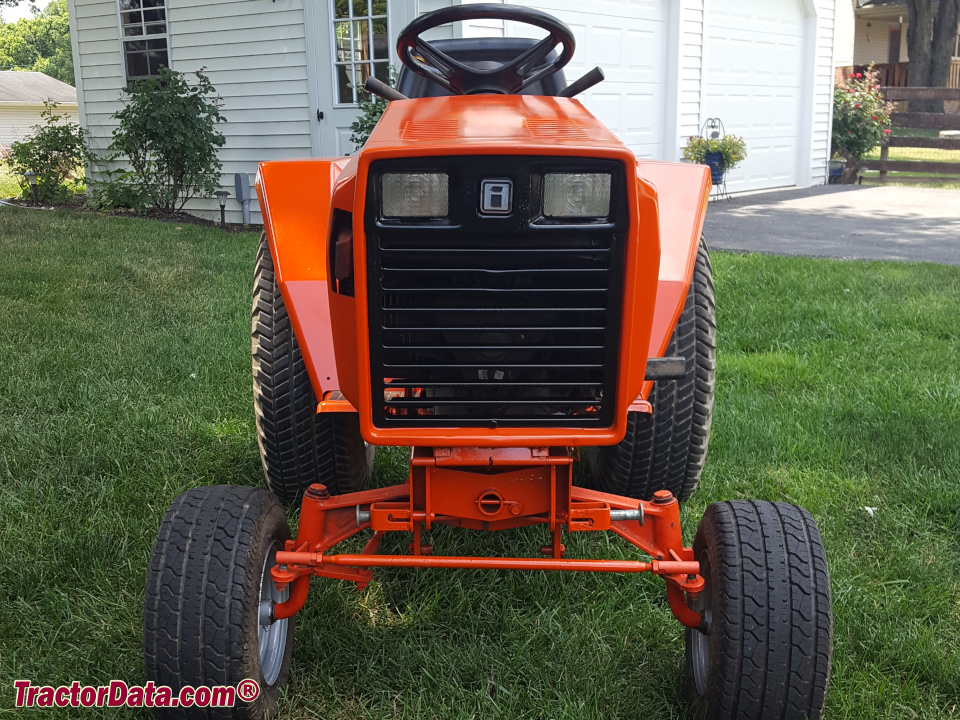

Ingersoll 4020 tractor photo
1989 - 2004
4000 Series
Garden tractor
Series map:
4018
4020
18.0hp
20.0hp
Production
ManufacturerIngersoll
Garden tractor
Built in Winneconne, Wisconsin, USA
Variants
4020PSpower steering
Ingersoll 4020 Engine
20HP Onan 781cc 2-cyl gasoline
Fuel tank3 gal
11.4 L
Engine details ...
Mechanical
Two-wheel drive
4020 Steeringmanual
4020PS Steeringpower
Open operator station.
Hydraulics
Typeopen center
Pressure2100 psi (transmission)
144.8 bar
 575 psi (lift)
39.6 bar
Valves2
4020 Pump flow8 gpm
30.3 lpm
4020PS Pump flow9.5 gpm
36.0 lpm
Tractor hitch
Rear Type0 OptOptional
Dimensions & Tires
Wheelbase48 inches
121 cm
Weight765 to 805 pounds
Front tire16x6.50-8
Rear tire32x8.00-16
Full dimensions and tires ...
Ingersoll 4020 attachments
44" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
Attachment details ...
4020 Serial Number Location

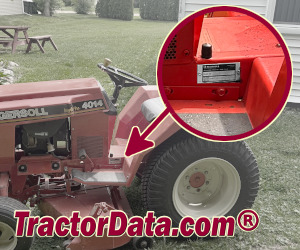

Ingersoll 4020 serial number location
Serial number plate on the left side of the Ingersoll 4020 tractor frame, above the floor board.
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps20
Charging volts12
Battery CCA300
Battery volts12
References
4020 references literature
Compact Tractors 3012, 3014, 3016, 3018, 3018PS, 4016, 4020, 4020PS (8-59130) published in 1993
