Bolens G12XL 1261

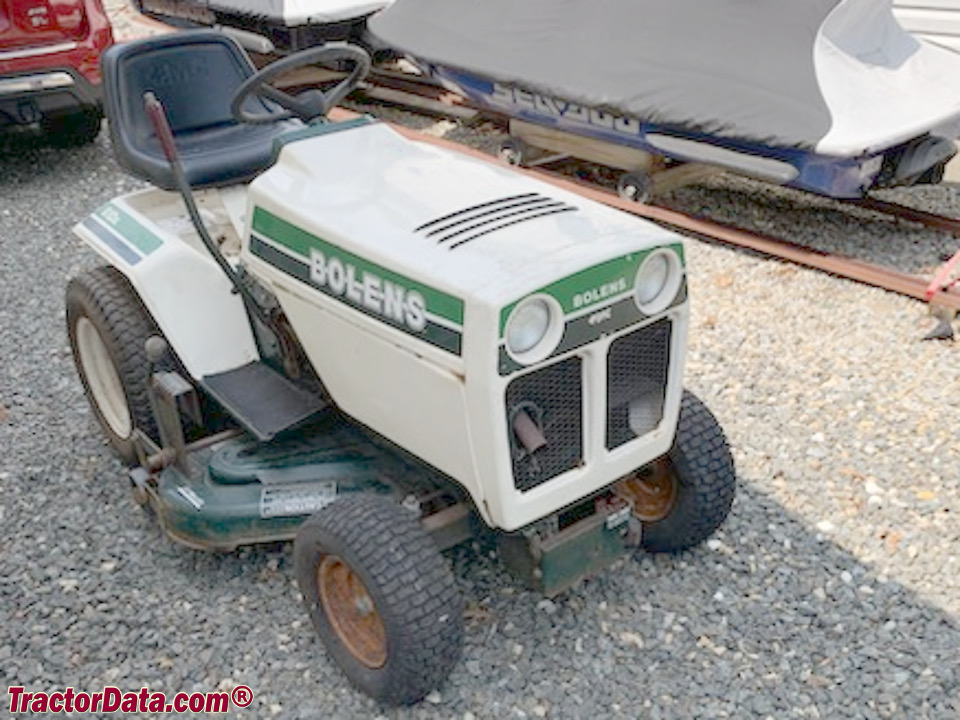

Bolens G12XL 1261 tractor photo
1980 - 1981
Medium Frame Series
Garden tractor
Production
ManufacturerBolens
Garden tractor
Bolens G12XL Engine
12HP Tecumseh 345cc 1-cyl gasoline
Fuel tank1.6 gal
6.1 L
Engine details ...
Mechanical
Steeringmanual
Disc brakes
Open operator station.
Tractor hitch
Typesleeve hitch (optional)
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase49 inches
124 cm
Weight703 lbs
318 kg
Front tire16/6.50-8
Rear tire23/8.50-12
Full dimensions and tires ...
Bolens G12XL attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
G12XL 1261 references literature
Lawn Machines published in 1981, by Bolens
