Bolens 1256 Engine


Bolens 1256 tractor photo
1970 - 1972
Tube Frame Series
Garden tractor
Series map:
1253
1256
12.0hp
12.0hp

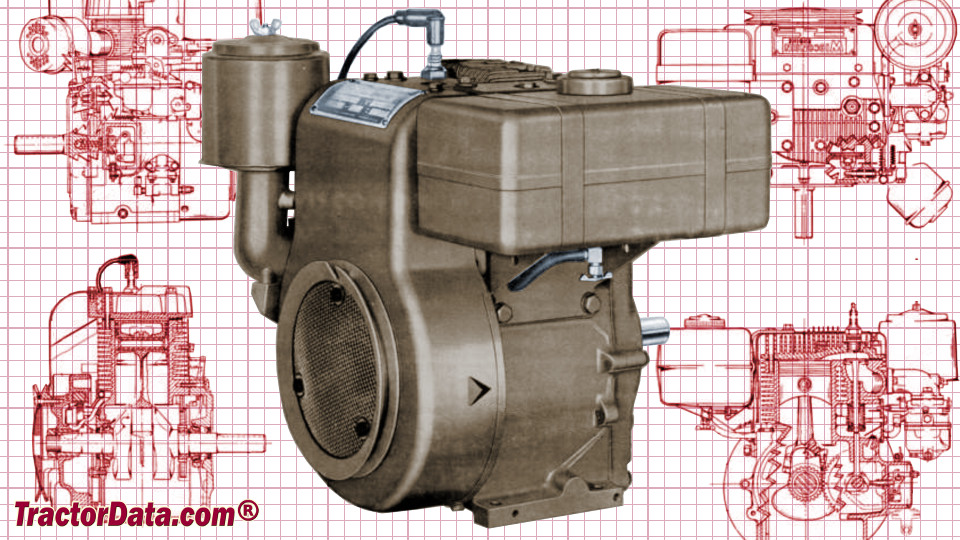

Engine Detail
Wisconsin TRA12D
gasoline
1-cylinder
air-cooled
Displacement453 cc
27.66 ci
Bore/Stroke3.50x2.875 inches
89 x 73 mm
Power12 hp
8.9 kW
Rated RPM3600
Starterelectric
Starter volts12
