Bolens 1225 Engine


Bolens 1225 tractor photo
1969
Tube Frame Series
Garden tractor
Series map:
1220
1225
1250
12.0hp
12.0hp
12.5hp

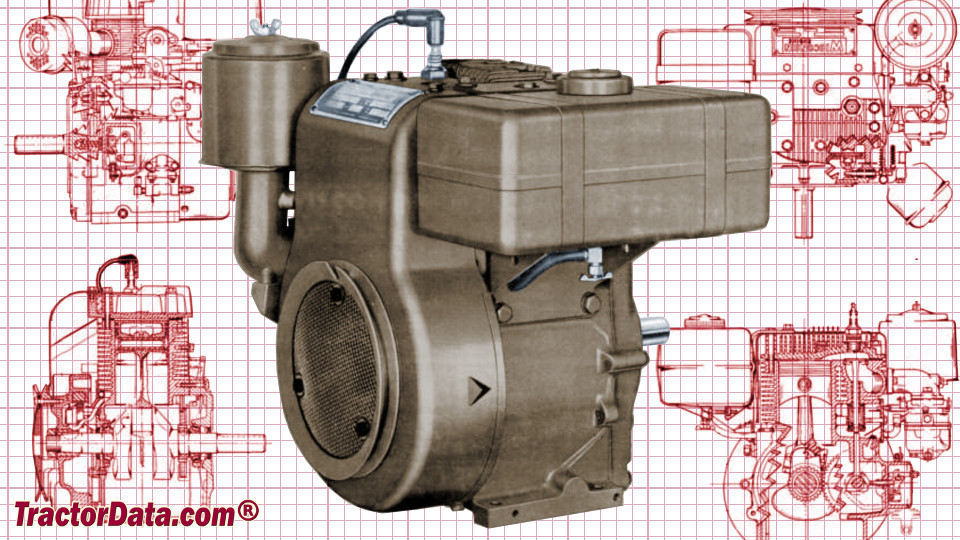

Engine Detail
Wisconsin TRA12D
gasoline
1-cylinder
air-cooled
Displacement453 cc
27.66 ci
Bore/Stroke3.50x2.875 inches
89 x 73 mm
Power12 hp
8.9 kW
Rated RPM3600
Starterelectric
Starter volts12
