Bolens H11XL 1058

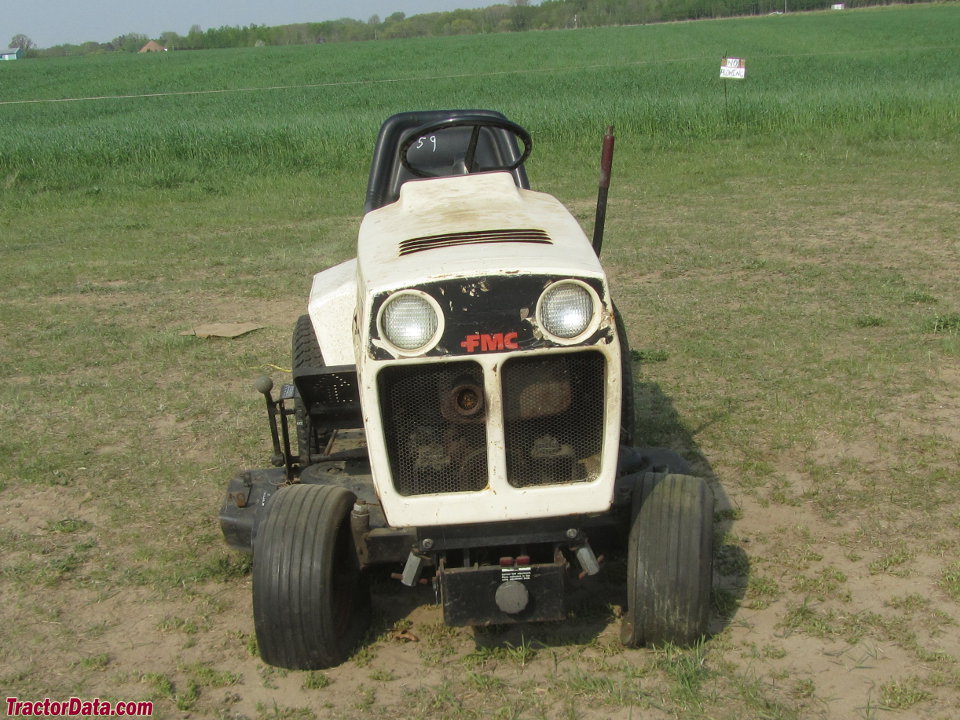

Bolens H11XL 1058 tractor photo
1978 - 1979
Medium Frame XL Series
Garden tractor
Production
ManufacturerBolens
Garden tractor
Variants
G11XLgear drive
H11XLhydrostatic
Bolens H11XL Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank1.6 gal
6.1 L
Engine details ...
Mechanical
Two-wheel drive
Steeringmanual
Disc brakes
Open operator station. Vinyl soft-side cab optional.
Tractor hitch
Typesleeve hitch
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Front PTO Type3600 (pulley)
Dimensions & Tires
Wheelbase49 inches
124 cm
Weight760 lbs
344 kg
Front tire16x6.50-8
Rear tire23x8.50-12
Full dimensions and tires ...
Bolens H11XL attachments
42" mid-mount mower deck
snowblower
blade
Attachment details ...
H11XL Serial Number Location

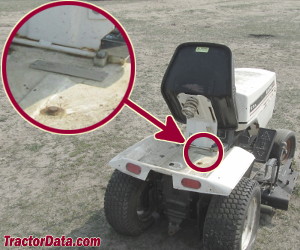

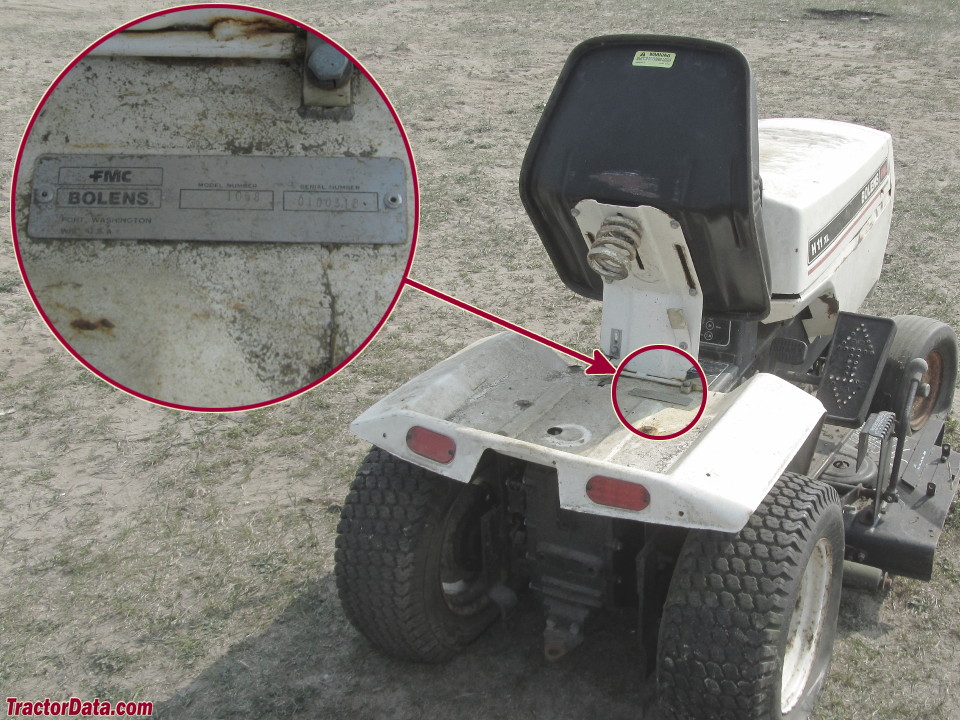

Bolens H11XL serial number location
Serial number plate on top of the fender deck, below the seat.
Electrical
Groundnegative
Battery volts12
Battery AH45
References
H11XL 1058 references literature
Lawn and Garden Tractors published in 1977, by Bolens
Lawn and Garden Tractors published in 1978, by Bolens
Lawn and Garden Tractors published in 1978, by Bolens
