Bolens GT-1800


Bolens GT-1800 tractor photo
1988 - 1995
DuraTrac Series
Garden tractor
Series map:
DGT-1700
GT-1800
GT-2000
17.0hp
18.0hp
20.0hp
Production
ManufacturerBolens
Garden tractor
The GT-1800 carried Bolens model codes 5118H and 5118HS (power steering).
Variants
GTX 18similar Troy-Bilt model
Bolens GT-1800 Engine
18HP Kohler 691cc 2-cyl gasoline
Fuel tank4 gal
15.1 L
Engine details ...
Mechanical
Two-wheel drive
Steeringmanual
 power optional
Open operator station
Photos
No photos of the Bolens GT-1800 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Rear Type0 OptOptional
Typesleeve hitch OptOptional
Power Take-off (PTO)
Front PTOindependent
Clutchelectro-magnetic
Front PTO Typeshaft
Engine RPM2000@3600
Dimensions & Tires
Wheelbase49 inches
124 cm
Weight925 lbs
419 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Bolens GT-1800 attachments
42" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery volts12
References

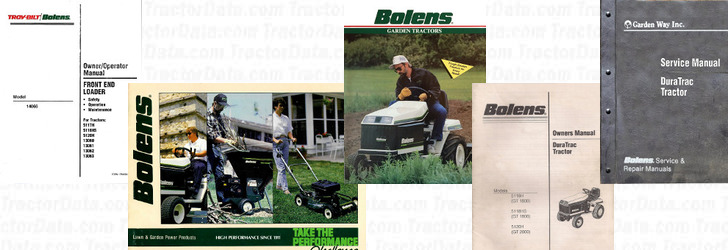

GT-1800 references literature
Owner/Operator Manual 14066 Front End Loader (1768332) published in 1993
Lawn and Garden Power Products published in 1989, by Bolens
Garden Tractors published in 1990, by Bolens
Owner's Manual DuraTrac Tractor (1761611) published in 1991
Service Manual DuraTrac Tractor (1760169) published in 1992
