Bolens HT-20D
|
|
| Production | |
| Manufacturer | Bolens |
| Garden tractor | |
| Built in Port Washington, Wisconsin, USA | |
| Bolens HT-20D Engine | |
| 19.9HP Wisconsin 863cc 2-cyl diesel | |
| Fuel tank | 5 gal 18.9 L |
 Engine details ... | |
| Bolens HT-20D Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Disc brakes | |
| Open operator station |
| Photos | |
 | |
 Bolens HT-20D photos... | |
| Tractor hitch | |
| Rear Type | 0 OptOptional |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual idler |
| Dimensions & Tires | |
| Wheelbase | 52 inches 132 cm |
| Weight | 1110 lbs 503 kg |
| Front tire | 18x8.50-8 |
| Rear tire | 26x12-12 |
 Full dimensions and tires ... | |
| Bolens HT-20D attachments | |
| 54" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 9 |
| 35 (optional) | |
| Battery volts | 12 |

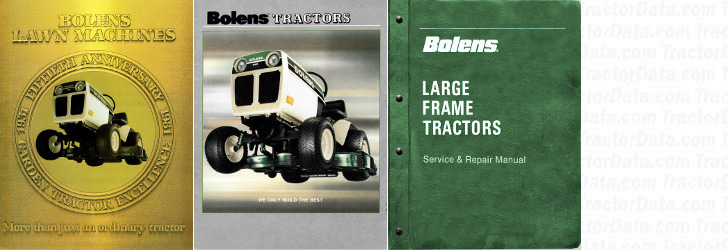

| References | |
 | |
| Lawn Machines published in 1981, by Bolens | |
| Bolens Tractors published in 1982 | |
| Service Manual Large Frame Tractors (552665-5) published in 1985 |
