| Engine Detail |
| Kohler SV610 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 597 cc
36.43 ci
|
| Bore/Stroke | 3.701x3.386 inches
94 x 86 mm
|
| Power (gross) | 21 hp
15.7 kW
|
| Compression | 8.5:1
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | Champion RC12YC
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

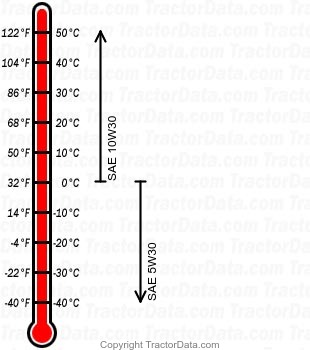

| Engine Oil |
|
| Oil capacity | 1.6 qts
1.5 L
|
| Oil change | 50 h
|

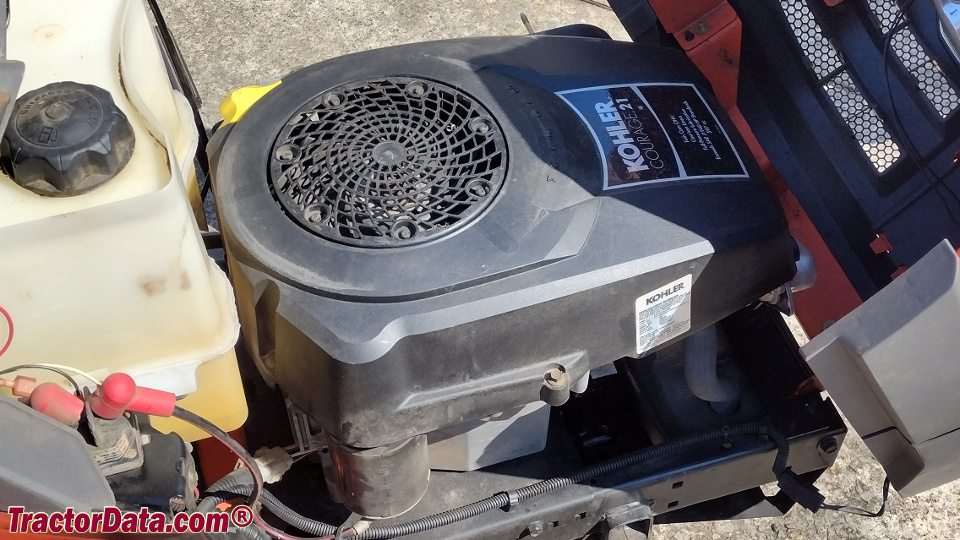

| Husqvarna YTH21K46 Engine |
 |
| Image courtesy of Luis V. |
