Lawn Tractors > Wheel Horse > 268-H

Wheel Horse 268-H Transmission



Wheel Horse 268-H tractor photo
1994 - 2003
Model year
260 Series
Garden tractor
Series map:
266-H
268-H
270-H
16.0hp
18.0hp
20.0hp
Transmission
TransmissionHydro-Gear 330-3000
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.8 qts
3.6 L
Oil type
SAE 20W-50
Oil changesealed unit, owner service is not recommended

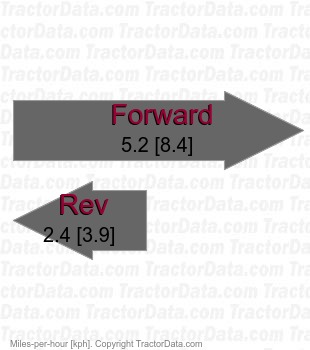

Speeds
268-H 330-3000 belt-driven hydrostatic speeds

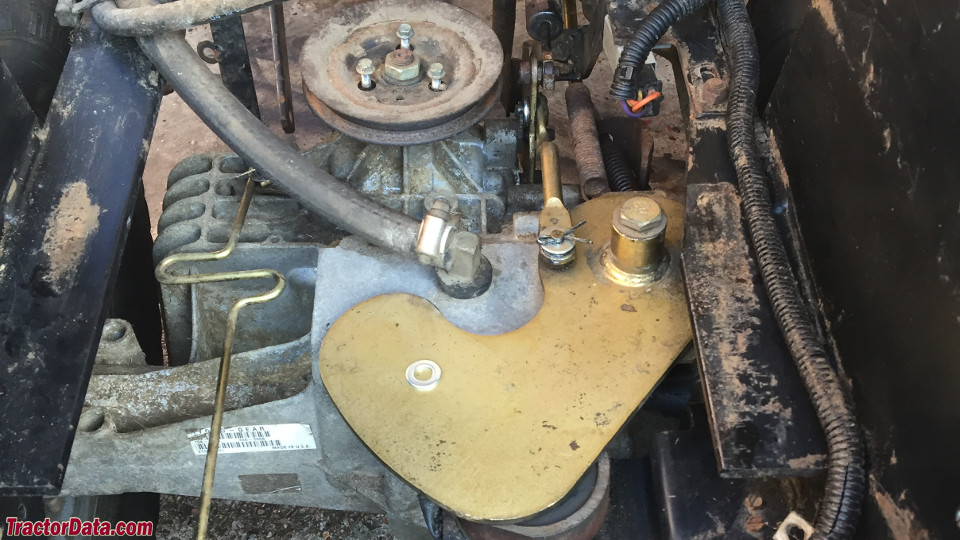

Wheel Horse 268-H Transmission
Wheel Horse 268-H transmission image
Image courtesy of Sorin Lungoci
