Wheel Horse 268-H Engine


Wheel Horse 268-H tractor photo
1994 - 2003
Model year
260 Series
Garden tractor
Series map:
266-H
268-H
270-H
16.0hp
18.0hp
20.0hp
Engine Detail
Kohler CV18S
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)18 hp
13.4 kW
Rated RPM3600
Starterelectric
Starter volts12

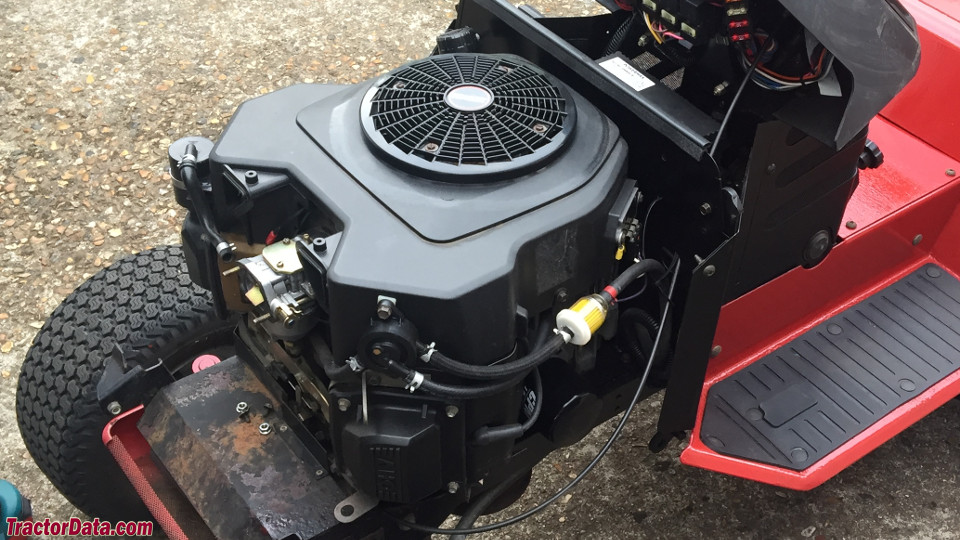

Wheel Horse 268-H Engine
Wheel Horse 268-H engine image
Image courtesy of Sorin Lungoci
