Lawn Tractors > Ford > 100

Ford 100



Ford 100 tractor photo
1966 - 1971
Model year
Garden tractor
Jacobsen built
Series map:
80
100
120
8.0hp
10.0hp
12.0hp
Production
DistributorFord
ManufacturerJacobsen
Garden tractor
Ford 100 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank1.25 gal
4.7 L
Engine details ...
Ford 100 Transmission
4-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
Ford 100
Ford 100 photos...
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Front PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase42 inches
106 cm
Weight636 lbs
288 kg
Front tire6.50-8
Rear tire8-00-12
Full dimensions and tires ...
Ford 100 attachments
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
100 Serial Number Location

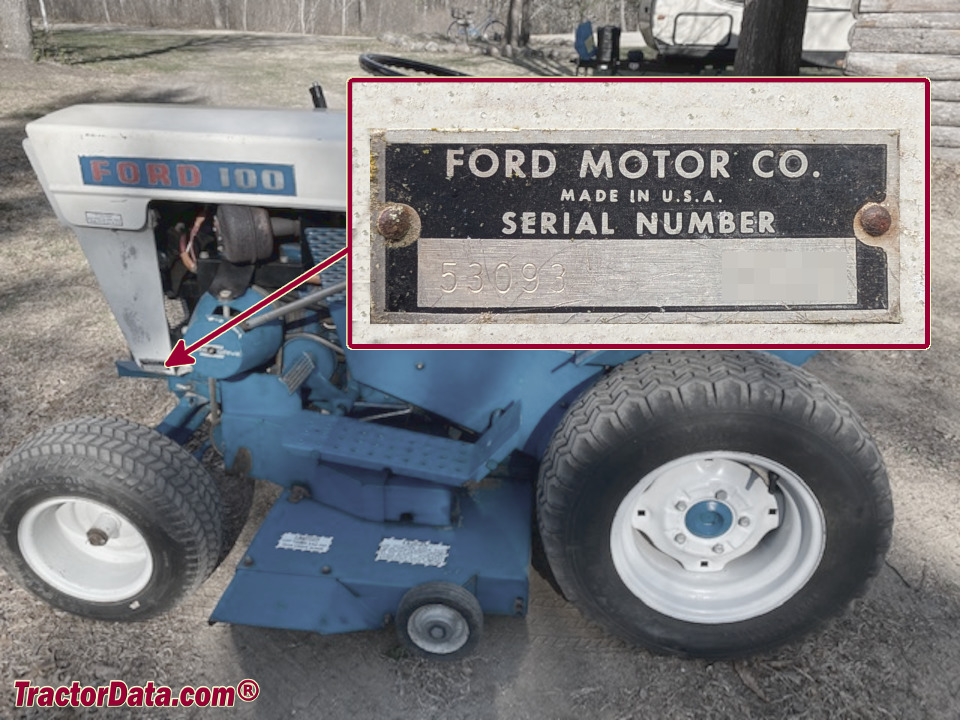

Ford 100 serial number location
Serial number plate on the left side of the Ford 100, above front axle.
Electrical
Groundnegative
Charging systemstarter-generator
Battery volts12
References
100 references literature
Tractors For Industrial Use published in 1967, by Ford
Industrial Tractors - Equipment published in 1968, by Ford
Lawn and Garden Tractors published in 1966, by Ford
Lawn and Garden Tractors published in 1967, by Ford
Engine Repair Manual (SE 3234) published in 1968
