Lawn Tractors > Sears > ST/16 917.25741

Sears ST/16 917.25741 Transmission



Sears ST/16 917.25741 tractor photo
1973 - 1976
Model year
Garden tractor
Roper built
Transmission
Typebelt-driven gear
Gears6 forward and 2 reverse
Three gears (1-3) plus reverse (R) with two ranges (low and high).

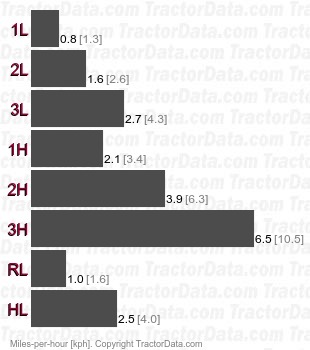

Speeds
ST/16 917.25741 belt-driven gear speeds

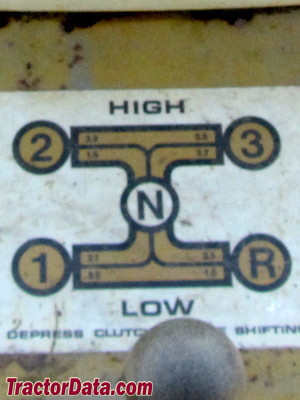

Shift Pattern
Sears ST/16 transmission controls

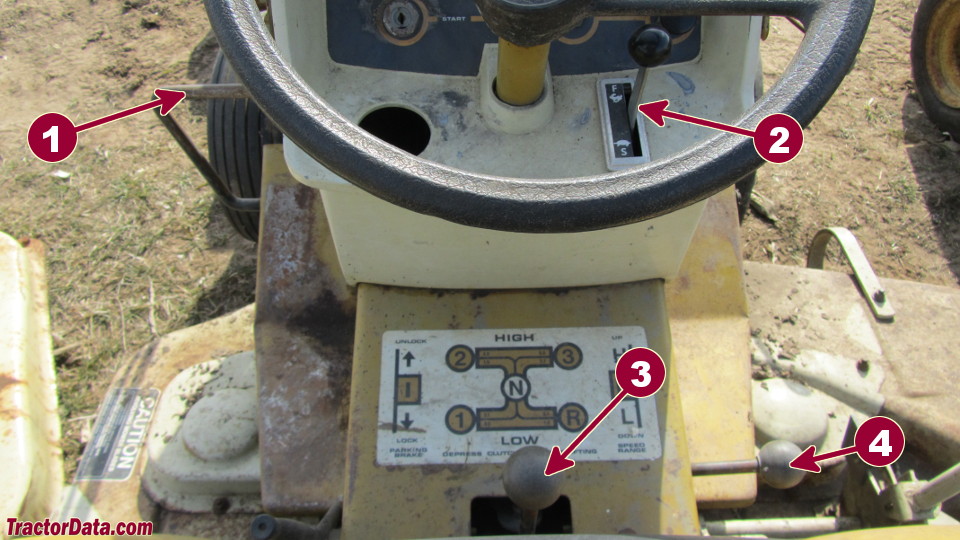

ST/16 Transmission Controls
Sears ST/16 transmission controls
1Clutch/brake2:Throttle
3Gear shift
4Range shift
