Bolens HT-20

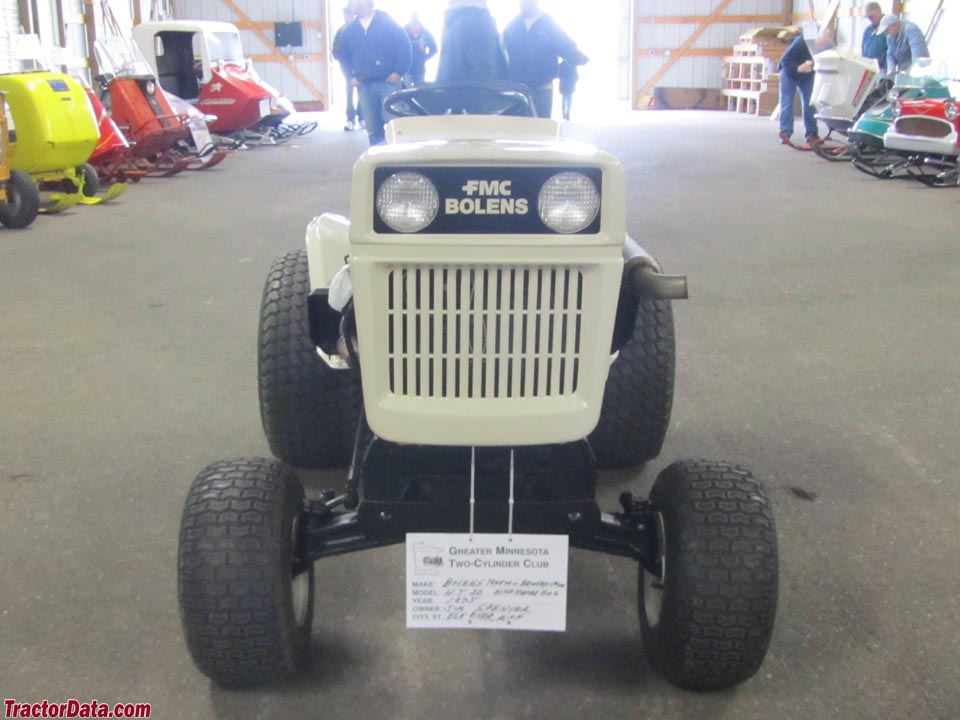

Bolens HT-20 tractor photo
1973 - 1978
Large Frame Series
Garden tractor
Series map:
HT-20
19.5hp
Production
ManufacturerBolens
Garden tractor
Built in Port Washington, Wisconsin, USA
The Bolens HT-20 carried model codes 2086 and 2087.
Bolens HT-20 Engine
19.5HP Kohler 868cc 2-cyl gasoline
Fuel tank5 gal
18.9 L
Engine details ...
Mechanical
Two-wheel drive
Steeringmanual
Disc brakes
Open operator station.
Tractor hitch
Rear Type0 OptOptional
Typesleeve hitch OptOptional
Power Take-off (PTO)
Clutchmechanical
Front PTO Type2000
Dimensions & Tires
Wheelbase52 inches
132 cm
Weight1090 lbs
494 kg
Front tire18-8.50x8
Rear tire26-12.00x12
Full dimensions and tires ...
Bolens HT-20 attachments
54" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery volts12
Battery AH45
References
HT-20 references literature
Lawn and garden tractors, attachments, accessories published in 1974, by Bolens
Lawn and Garden Tractors published in 1974, by Bolens
Lawn and Garden Tractors published in 1975, by Bolens
Lawn and Garden Tractors published in 1976, by Bolens
Lawn and Garden Tractors published in 1977, by Bolens
HT-20 published in 1973, by Bolens
Owner's Manual HT-20 (2086) (552667) published in 1973
Service Manual Large Frame Tractors (552665-5) published in 1985
Products for Bolens Tractors published in 1973, by Johnson - ARPS
