Engine Detail | |
Tecumseh HH120 | |
gasoline | |
1-cylinder | |
air-cooled horizontal-shaft | |
Displacement | 453 cc 27.66 ci |
Bore/Stroke | 3.50x2.875 inches 89 x 73 mm |
Power (gross) | 12 hp 8.9 kW |
Fuel system | carburetor |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches 0.762 mm |
Point gap | 0.020 inches 0.508 mm |
Intake valve clearance | 0.010 inches 0.254 mm |
Exhaust valve clearance | 0.020 inches 0.508 mm |

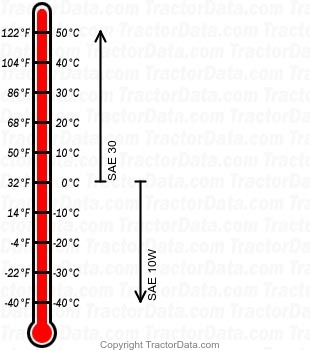

Engine Oil | |
![]() | |
Oil change | 25 h |
Sears Suburban 12 Engine | |
![]() |
