Bolens 1900 1966 Engine


No photo available
1983 - 1985
Q Series
Garden tractor
Series map:
1900
19.0hp
Engine Detail
Kohler KT19QS
gasoline
2-cylinder
air-cooled horizontal-shaft
Displacement770 cc
47 ci
Bore/Stroke3.125x3.0625 inches
79 x 78 mm
Power (gross)19 hp
14.2 kW
Air cleanerpaper element with pre-cleaner (Kohler 5208302) (Kohler 4508302)
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChamption RBL15Y
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Engine Oil

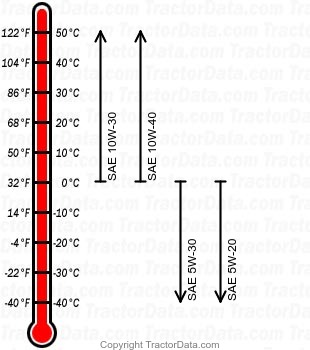

1900 1966 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
