| | 2013 - 2018 |
| X700 Series | | Garden tractor |
|
Series map:
X710
X730
22.0hp
25.5hp
| Engine Detail |
| Kawasaki FD671D |
| gasoline |
| 2-cylinder |
| liquid-cooled horizontal-shaft V-Twin |
| Displacement | 745 cc
45.5 ci
|
| Bore/Stroke | 3.07x3.07 inches
78 x 78 mm
|
| Power (gross) | 22 hp
16.4 kW
|
| Fuel system | carburetor
|
| Starter | electric
|
| Starter volts | 12
|

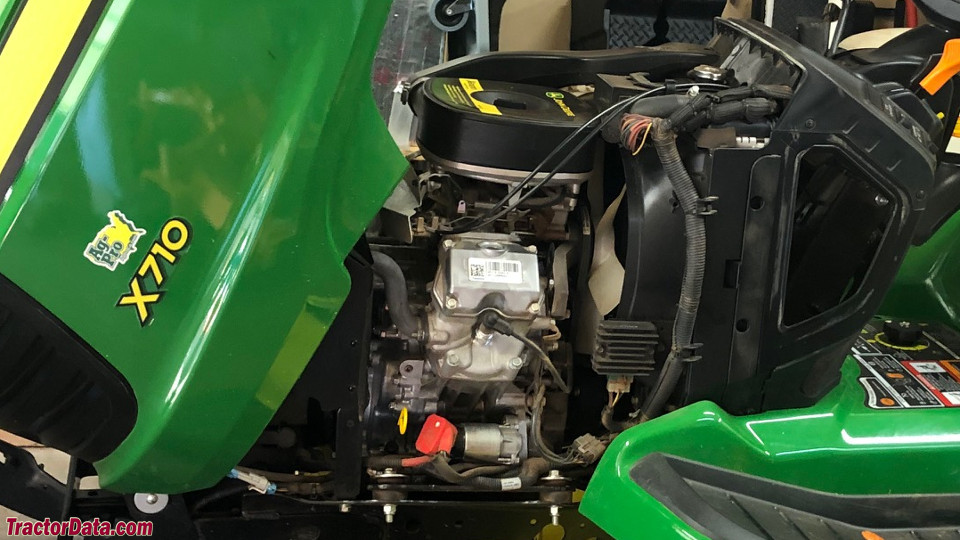

| John Deere X710 Engine |
 |
| Image courtesy of Jesse Jamerson |
