| | 1977 - 1979 |
| Garden tractor | | Snapper built |
|
Series map:
1200
1450
1650
12.0hp
14.0hp
16.0hp
| Transmission |
| Transmission | Sundstrand Series 15 - HT90
|
| Type | belt-driven hydrostatic
|
| Gears | infinite forward and reverse (2-range)
|
| Oil capacity | 5 qts
4.7 L
|
| Oil type |
|
| Oil change | 300 h
|
| Sundstrand hydrostatic with Peerless 2518 transaxle. Right-hand treadle pedal to control speed and direction. Tractor must be stopped with brake pedal depressed to shift range. |

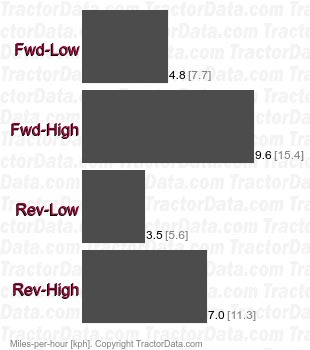

| Speeds |
|
