Lawn Tractors > Toro > Wheel Horse 520Lxi

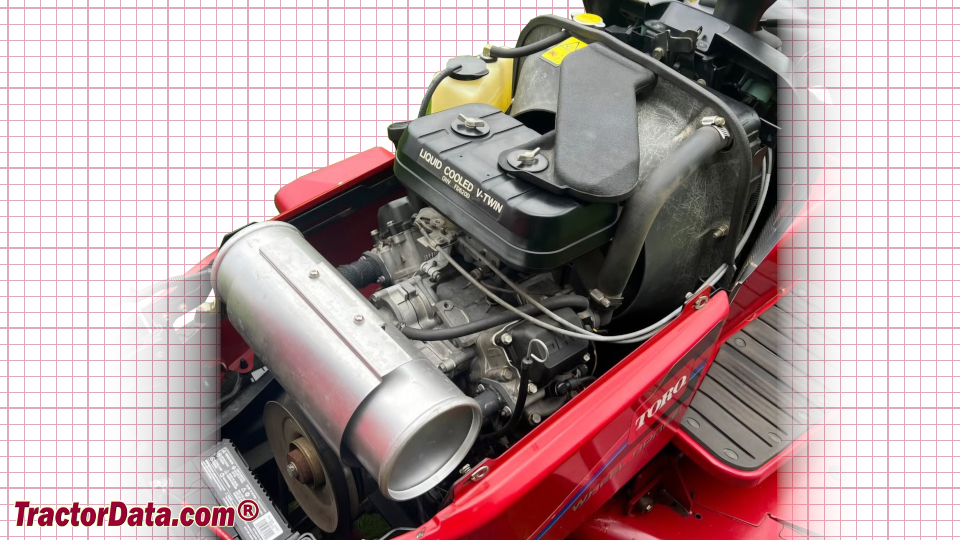

Toro Wheel Horse 520Lxi Engine



Toro Wheel Horse 520Lxi tractor photo
1998 - 2002
5xi Series
Garden tractor
Series map:
520xi
520Lxi
522xi
20.0hp
20.0hp
22.0hp
Engine Detail
Kawasaki FD620
gasoline
2-cylinder
liquid-cooled horizontal-shaft V-Twin
Displacement617 cc
37.7 ci
Bore/Stroke2.992x2.68 inches
76 x 68 mm
Power (gross)20 hp
14.9 kW
Rated RPM3400
Starterelectric
Starter volts12
Oil capacity1.9 qts
1.8 L
Coolant capacity4.1 qts
3.9 L
SparkplugBMR4A
Sparkplug gap0.026 inches
0.660 mm
