New Holland LS55 9863219 Transmission


New Holland LS55 9863219 tractor photo
1996 - 2003
LS Series
Garden tractor
Toro built
Series map:
LS45
LS55
18.0hp
20.0hp
Transmission
TransmissionTuff Torq K61
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.5 qts
3.3 L
Foot-pedal controlled hydrostatic transmission with cruise control standard.
Speeds

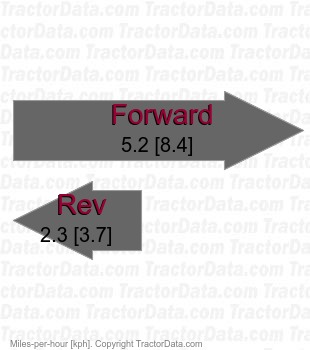

LS55 9863219 K61 belt-driven hydrostatic speeds
Transmission
TransmissionHydro-Gear 330-300
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity3.8 qts
3.6 L
Oil type
SAE 20W-50
Oil changesealed unit, owner service is not recommended
Foot-pedal controlled hydrostatic transmission with standard cruise control. The Hydro-Gear was used on the LS55 beginning with the 2000 model year.
Speeds

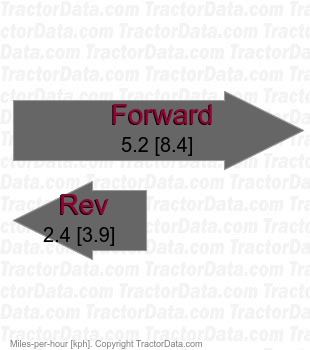

LS55 9863219 330-300 belt-driven hydrostatic speeds
