| | 1996 - 2004 |
|
| LS Series | | Garden tractor | | Toro built |
|
Series map:
LS25
LS35
12.5hp
15.0hp
| Engine Detail |

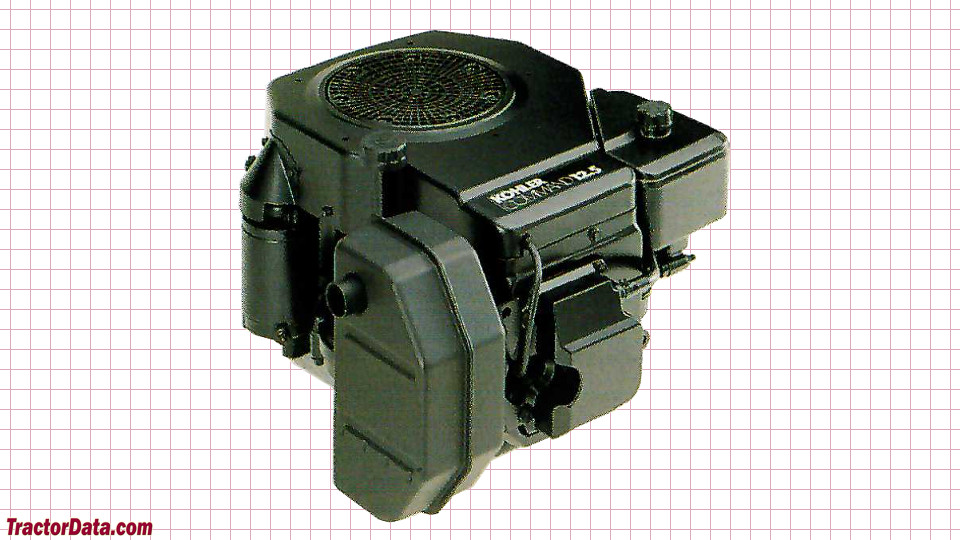

| Kohler CV12.5 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 398 cc
24.3 ci
|
| Bore/Stroke | 3.43x2.64 inches
87 x 67 mm
|
| Power (gross) | 12.5 hp
9.3 kW
|
| Rated RPM | 3600
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 2 qts
1.9 L
|
| New Holland LS25 Engine |
 |
