Ford YT-16H

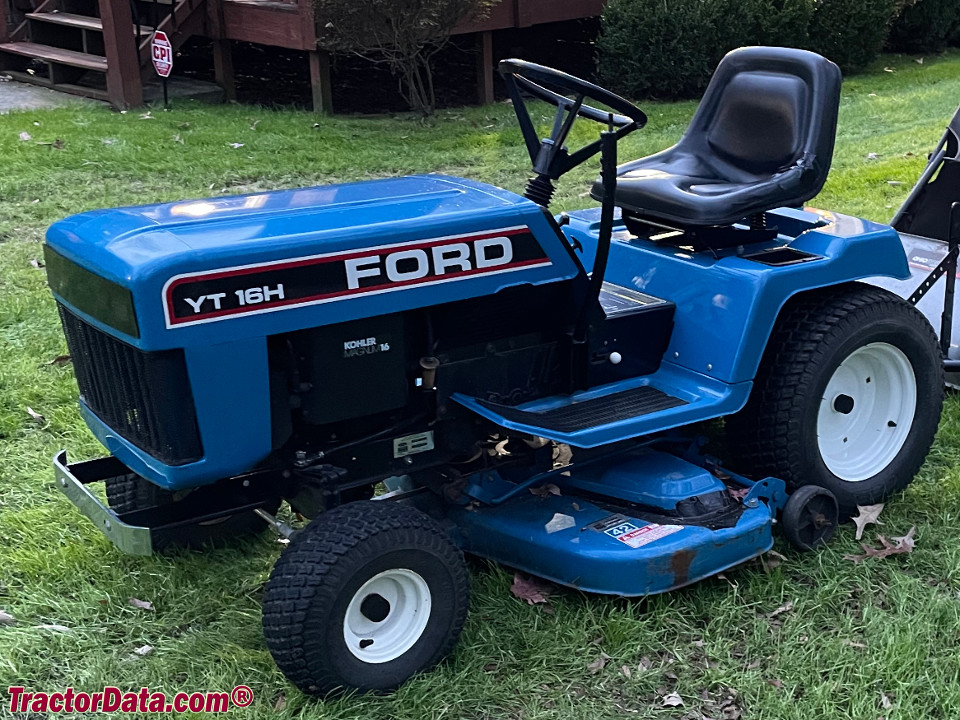

Ford YT-16H tractor photo
1984 - 1993
Model year
YT Series
Lawn tractor
Series map:
YT-16
YT-16H
YT-18H
16.0hp
16.0hp
18.0hp
Production
ManufacturerFord
Lawn tractor
Variants
YT-165-speed
YT-16Hhydrostatic
Ford YT-16H Engine
16HP Kohler 691cc 2-cyl gasoline
Fuel tank4 gal
15.1 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Mechanial disc brakes
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase49 inches
124 cm
Weight788 lbs
357 kg
Front tire15x6.00-6
Rear tire22x9.00-12
Full dimensions and tires ...
Ford YT-16H attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
YT-16H Serial Number Location
Ford YT-16H serial number location
Serial number plate on the left side of the tractor frame, just ahead of the foot rest.
YT-16H Serial Numbers
198409GN2198 (model code)
198509GN2198 (model code)
198609GN2199 (model code)
198709GN2154 (model code)
19889607432 (model code)
19899607481 (model code)
19909800687 (model code)
19919800687 (model code)
19929800687 (model code)

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References
YT-16H references literature
Riding Mowers, Yard, Lawn, and Lawn & Garden Tractors published in 1990, by Ford
The Leisure Pleasers published in 1991, by Ford
