Simplicity 4041 PowrMax
|
|
| Production | |
| Manufacturer | Simplicity |
| Garden tractor | |
| Built in Port Washington, Wisconsin, USA | |
| Variants | |
| 620 | similar Allis Chalmers model |
| Simplicity 4041 Engine | |
| 19.5HP Onan 816cc 2-cyl gasoline | |
| Fuel tank | 3.8 gal 14.4 L |
 Engine details ... | |
| Simplicity 4041 Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Disc brakes | |
| Open operator station. |
| Photos | |
 | |
 Simplicity 4041 photos... | |
| Hydraulics | |
| Pressure | 500 psi 34.5 bar |
| Pump flow | 2.25 gpm 8.5 lpm |
| Tractor hitch | |
| Rear Type | 0 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electric |
| Rear PTO Type | 2000 |
| Front PTO | independent |
| Clutch | electric |
| Front PTO Type | 3600 |
| Dimensions & Tires | |
| Wheelbase | 56 inches 142 cm |
| Weight | 1300 lbs 589 kg |
| Front tire | 20x8-10 |
| Rear tire | 29x12.50-10 |
 Full dimensions and tires ... | |
| Simplicity 4041 attachments | |
| 60" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
 Attachment details ... |
| 4041 Serial Number Location | |
 | |

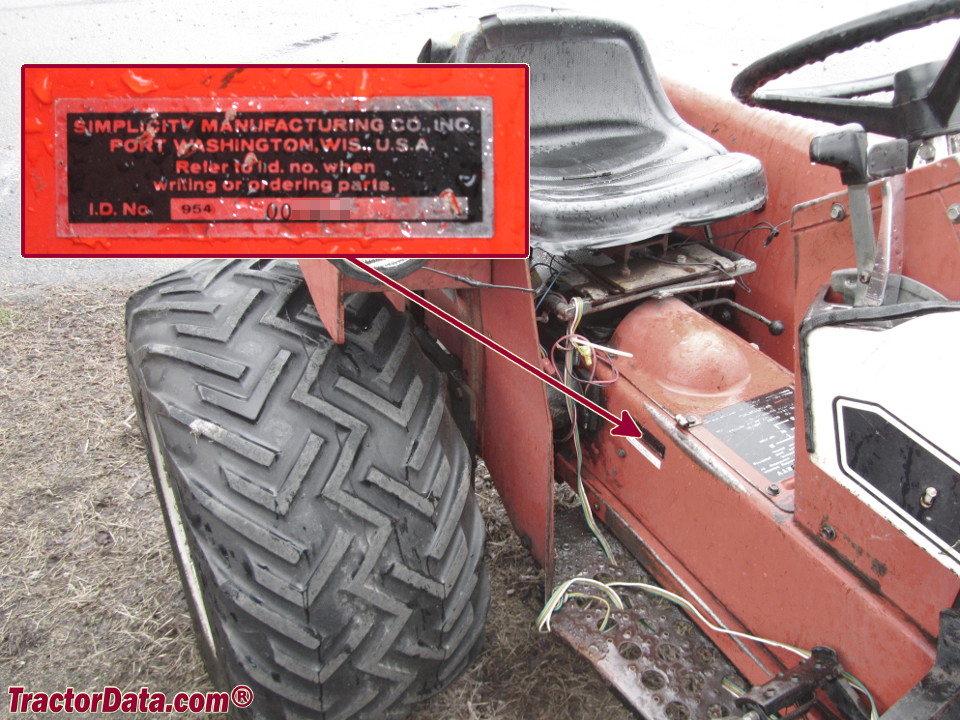

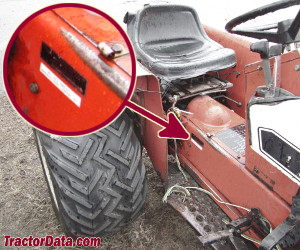

| Serial number decal on the right side of the tractor frame, above the foot rest. |
| Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 20 |
| Battery volts | 12 |
| Battery AH | 45 |
| References | |
 | |
| The New Size Tractor 4041 published in 1973, by Simplicity | |
| Owners Manual Pow'r Max | |
| Tractors and Attachments published in 1974, by Simplicity | |
| Operator's Manual Model 1690112 Loader | |
| Operator's Manual System 9000 Loader (TP-1380) |
