Lawn Tractors > Simplicity > 4041 PowrMax

Simplicity 4041 PowrMax Engine



Simplicity 4041 PowrMax tractor photo
1973 - 1974
PowrMax Series
Garden tractor
Series map:
4041
19.5hp
Engine Detail
Onan CCKB
gasoline
2-cylinder
air-cooled horizontal-shaft opposed-twin
Displacement816 cc
49.8 ci
Bore/Stroke3.25x3.00 inches
83 x 76 mm
Power (gross)19.5 hp
14.5 kW
Air cleanerpaper element
Compression7:1
Rated RPM3600
Idle RPM1200-3850
Starterelectric
Starter volts12
SparkplugChampion H-8
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.007 inches
0.178 mm
Exhaust valve clearance0.016 inches
0.406 mm
Engine Oil

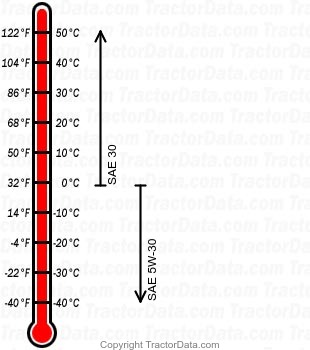

4041 PowrMax gasoline engine oil chart
Oil capacity3.5 qts
3.3 L
