Transmission | |
Type | shaft-driven gear |
Gears | 3 forward and 1 reverse |
Clutch | 4.5-inch dry disc |
Oil capacity | 3.5 qts 3.3 L |

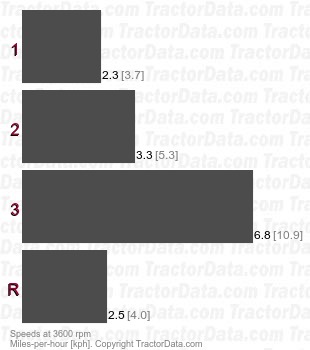

Speeds | |

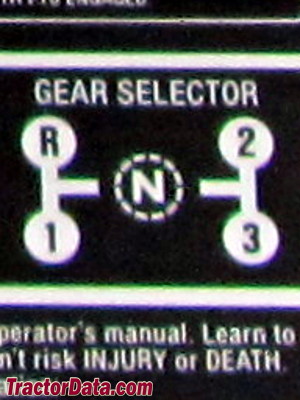

Shift Pattern | |

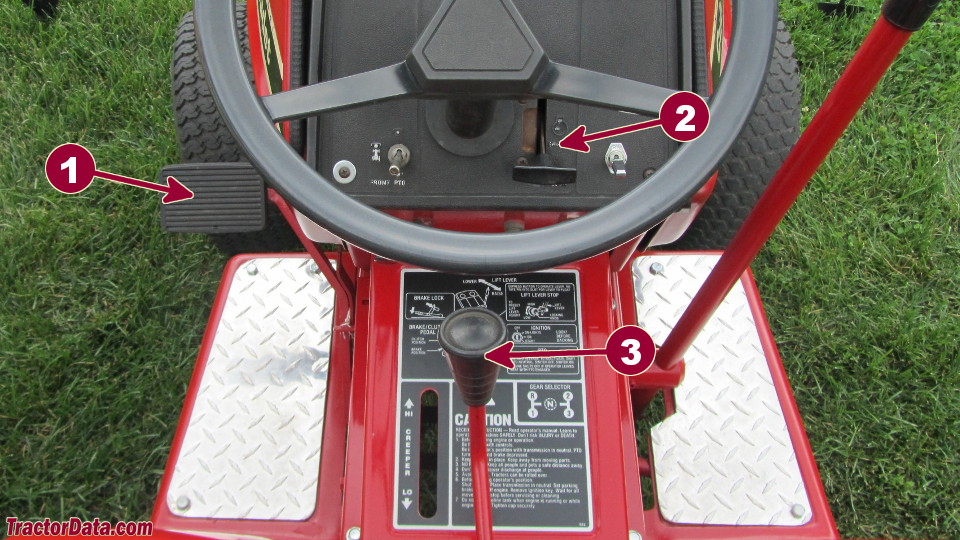

582 Transmission Controls | |
1 | Clutch/brake |
2 | Throttle |
3 | Gear shift |
