Lawn Tractors > Cub Cadet > 1015

Cub Cadet 1015 Engine



Cub Cadet 1015 tractor photo
1988 - 1991
Lawn tractor
Series map:
1015
1020
10.0hp
10.0hp
Engine Detail
Briggs & Stratton
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement399 cc
24.36 ci
Bore/Stroke3.44x2.62 inches
87 x 67 mm
Power (gross)10 hp
7.5 kW
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

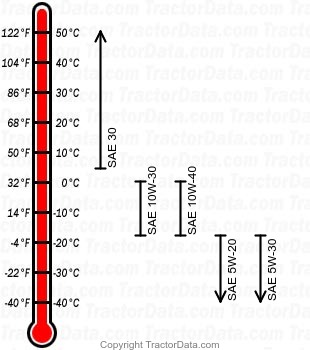

1015 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h
