Cub Cadet AGS 2160 Engine


Cub Cadet AGS 2160 tractor photo
1994 - 1997
2000 Series
Garden tractor
Series map:
2155
2160
2165
15.0hp
16.0hp
16.0hp
Engine Detail
Briggs & Stratton Vanguard
gasoline
2-cylinder
air-cooled
Displacement480 cc
29.3 ci
Bore/Stroke2.68x2.60 inches
68 x 66 mm
Power (gross)16 hp
11.9 kW
Rated RPM3600
Idle RPM1200-3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.005 inches (cold)
0.127 mm
Exhaust valve clearance0.005 inches (cold)
0.127 mm
Engine Oil

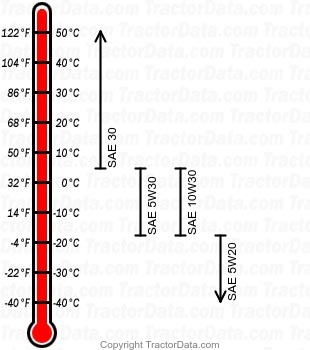

AGS 2160 gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
Oil change50 h
