Lawn Tractors > Cub Cadet > 1527

Cub Cadet 1527 Engine



Cub Cadet 1527 tractor photo
2003
1500 Series
Lawn tractor
Series map:
1525
1527
1529
15.0hp
17.0hp
19.0hp
Engine Detail
Kawasaki FH500V
gasoline
2-cylinder
air-cooled
Displacement494 cc
30.15 ci
Bore/Stroke2.68x2.68 inches
68 x 68 mm
Power (gross)17 hp
12.7 kW
Compression8.5:1
Rated RPM3600
Idle RPM1200-3600
Torque25.1 lb-ft
34.0 Nm
Torque RPM2400
Starterelectric
Starter volts12
SparkplugChampion RCJ8Y
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

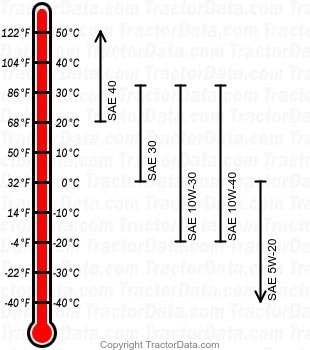

1527 gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
Oil change100 h
