Cub Cadet 1525 Engine


Cub Cadet 1525 tractor photo
2003
1500 Series
Lawn tractor
Series map:
1525
1527
15.0hp
17.0hp
Engine Detail
Kawasaki FH430V
gasoline
2-cylinder
air-cooled
Displacement431 cc
26.3 ci
Bore/Stroke2.56x2.56 inches
65 x 65 mm
Power (gross)15 hp
11.2 kW
Compression8.5:1
Rated RPM3600
Idle RPM1200-3600
Torque23.6 lb-ft
32.0 Nm
Torque RPM2400
Starterelectric
Starter volts12
SparkplugChampion RCJ8Y
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

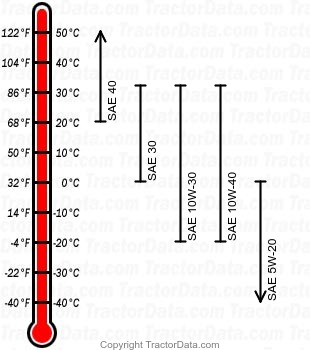

1525 gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
Oil change100 h
