Lawn Tractors > Cub Cadet > 1720

Cub Cadet 1720 Engine



Cub Cadet 1720 tractor photo
1988 - 1991
Lawn tractor
Series map:
1715
1720
17.0hp
17.0hp
Engine Detail
Kohler MV18
gasoline
2-cylinder
air-cooled vertical-shaft
Displacement691 cc
42.18 ci
Bore/Stroke3.125x2.75 inches
79 x 70 mm
Power (gross)17 hp
12.7 kW
Compression6.0:1
Idle RPM1350-3400
Starterelectric
Starter volts12
Sparkplug759-334
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

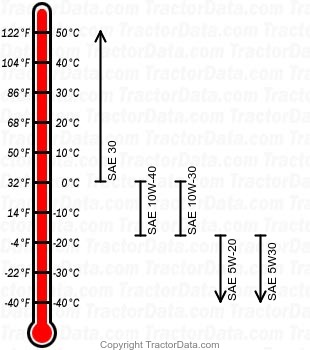

1720 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change50 h
