Lawn Tractors > Cub Cadet > 1405

Cub Cadet 1405 Engine



No photo available
1990 - 1991
Lawn tractor
Series map:
1405
1415
14.0hp
14.0hp
Engine Detail
Kohler
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement398 cc
24.30 ci
Bore/Stroke3.43x2.64 inches
87 x 67 mm
Power (gross)14 hp
10.4 kW
Idle RPM1800-3400
Starterelectric
Starter volts12
SparkplugRC12YC
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

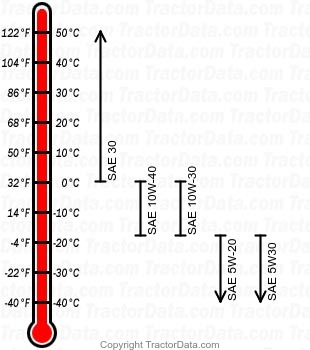

1405 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change100 h
